    IP65 Microwave UL Motion Sensor for Linear & Batten and HIgh Bay , Large Enhanced Detection Zone Up To 12m Height


    IP65 Microwave Motion Sensor for Linear & Batten and HIgh Bay, Large Enhanced Detection Zone Up To 12m Height


    1. Features:


    • Rated input voltage 120/277/347Vac
    • Large detection zone, IP65
    • 12m Max. Mounting height
    • Stand-by Power: ≤1.0W
    • On/ off, 3-step dimming function
    • North American version for linear & batten and high bay & low bay.
    • Functions such as detection area, hold time, stand-by level, stand-by dim level etc can be set via DIP or infrared remote control MH01.
    • 5 Years Guarantee

    2. Parameters:


    InputRated Input Voltage120/277/347Vac
    Stand-by Power≤1.0W
    Wiring MethodWiring connection Wire diameter:18AWG
    OutputOperating ModeON/OFF 1-10V
    Load Power

    800W Inductive 1200W Resistive @347VAC

    1200W Inductive 1600W Resistive @480VAC

    1-10V Dimming< 50mA (Non constant current source)
    Wiring MethodWiring connection Wire diameter:18AWG
    Sensor ParametersHF Operating frequency5.8 GHz ±75 MHz,ISM wave band
    HF Radiated power0.5mW Max.
    Detection Area100%/50%(Remote control:100%/50%)
    Hold time5S/30S/1min/3min/20min/30min(Remote control:5S/30S/1min/3min/5min/10min/20min/30min)
    Stand-by Level0s/1min/3min/10min/30min/Disable(Remote control:0s/10S/1min/3min/5min/10min/30min/Disable)
    Daylight Sensor5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable(Remote control:5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable)
    Stand-by Dim Level10%/20%/30%/50%(Remote control:10%/20%/30%/50%)
    Mounting HeightMax. Mounting height:12m Max.
    Detection Angel150°(wall mounting), 360°(ceiling mounting)

    Operating

    Environment

    Operating temperature-35℃~+55℃
    Storage temperature-40℃~+80℃

    Safety

    & EMC

    Isolation pressurizationN/A
    EMCN/A
    OthersCertificate requirementUL
    IP ratingIP65
    Protection ClassN/A
    Installation requirementIndependent Installation
    Installation size¢72*59mm
    Packaging requirementBubble bag + Clapboard +Outer Carton (K=A)
    Life50000h

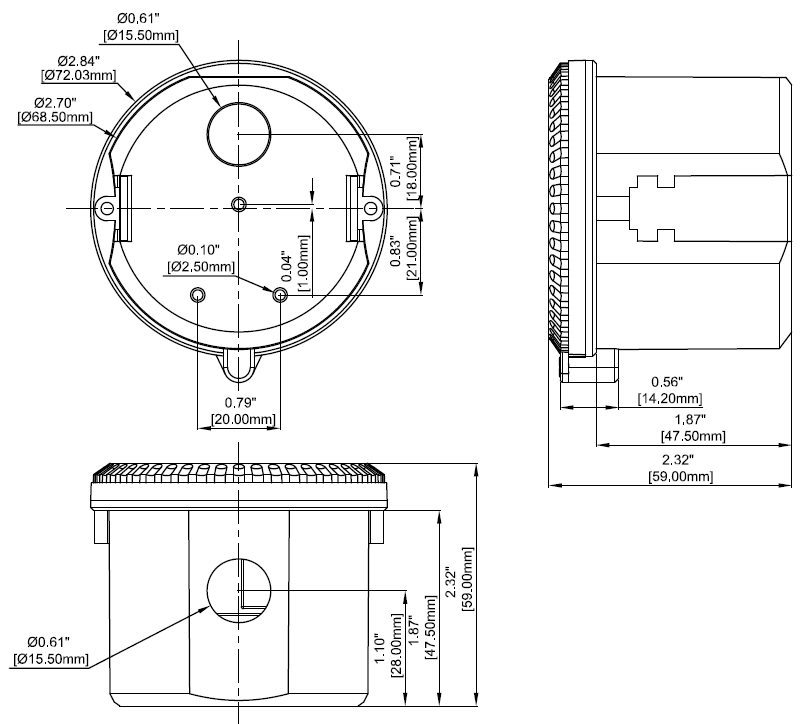

    3. Dimension (Unit:mm)

    4. Wiring Diagram



    5. Function


    6. Settings


    • Detection Area
    1
    100%ON
    50%-

    • Hold time
    234
    5sONONON
    30s-ONON
    90sON-ON
    3min--ON
    20minONON-
    30min---

    • Stand-by Period
    123
    5s---
    5minONON-
    10min--ON
    30minON-ON
    1h-ONON
    +∞ONONON

    • Stand-by Dim Level
    Brightness %Constant
    Voltage Output
    45
    5-10%1.5±0.2VONON
    15-20%2V±0.2VON-
    25-30%3V±0.2V-ON
    45-50%5V±0.2V-

    • Daylight Sensor
    6789
    5LuxONONONON
    15Lux-ONONON
    30LuxON-ONON
    50lux--ONON
    100luxONON-ON
    150luxONONON-
    Disable----
