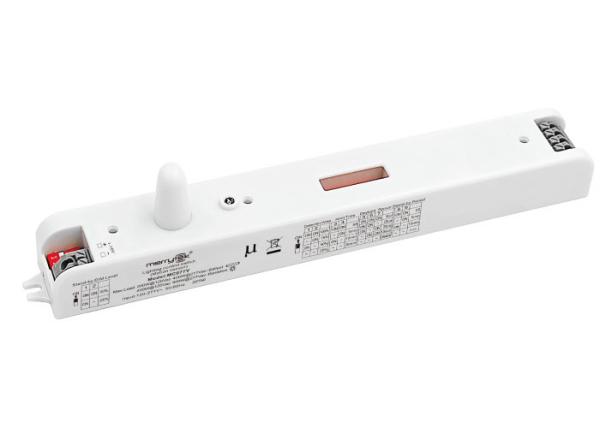

    120-277VAC Dimmable Microwave Sensor MC077V With Needle Antenna

    Ask Lasest Price
    Brand Name : Merrytek
    Model Number : MC077V
    Certification : CE,SAA,UL
    Price : Negotiation
    Payment Terms : T/T or Western Union or PayPal
    Supply Ability : 10,000pcs per month
    Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
    • Product Details
    • Company Profile

    120-277VAC Dimmable Microwave Sensor MC077V With Needle Antenna

    MC077V Dimmable Motion Sensors with Needle Antenna for LED Linear Batten Light

    • Dimmable function for tri-proof light
    • Stand-by power ≤ 0.5W
    • detection area, hold time and daylight sensor could be set via DIP
    • 5 Years Guarantee

    InputInput Voltage108-306V AC 50Hz
    Rated Input Voltage120-277V AC 50Hz
    Stand-by Power≤ 0.5W
    OutputLoad PowerAC120V 100W (Inductive), AC220V-277V 200W (Inductive)
    AC120V 200W(Resistive),AC220V-277V 400W(Resistive)
    Sensor ParametersHold Time

    5s/5min/10min/30min

    Sensing Range

    50%/25%/10%

    Daylight Sensor

    Disable/100Lux/50Lux/25Lux/5Lux

    Mounting HeightCeiling Mounting:3-4m
    Detection AreaWalking 0.5-1m/S keep walking≥2mwalk & stop≥5m
    Wireless ParametersOperating frequency5.8 GHz ±75 MHz
    control2 step /3 step dimming/ on off function

    Operating

    Environment

    Operating temperature-25℃ - +60℃
    Storage temperature-35℃~+80℃ Humidity : 85% (Non-condensing)

    Safety

    & EMC


    Isolation pressurizationN/A
    EMCEN55015
    Certificate requirementCE
    OthersWiring methodPress fit terminal (4)
    IP ratingIP20(Built-in)
    Protection ClassClass II
    Installation Size169*26*40mm
    Packaging requirementClapboard +Outer Carton (K=A)
    Life50000h
    Dimension (Unit:mm)
    Wiring Diagram
    Function
