MLC18C-N 18W integrated sensor LED driver for LED ceiling light , ON - OFF / Dimming

1, Stand-by power ≤1W
2, Support mounting height up to 6m Max.
3, Stand-by dimming level is optional, 10%/ 25%.

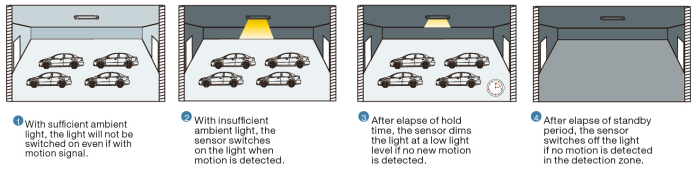

4, Working mode: Auto switch on/off or dimming by motion and ambient light level.
5, Compact size makes the drivers easy to be installed in luminaries and get more simple lighting structure.
6, Detection area, time delay, daylight threshold, stand-by dimming time and stand-by dimming level can be set via DIP switch.
7, Sensor DIM LED drivers, originally pioneered by Merrytek, are innovative products integrated with HF motion detector, daylight sensor and LED power supply.

Specifications

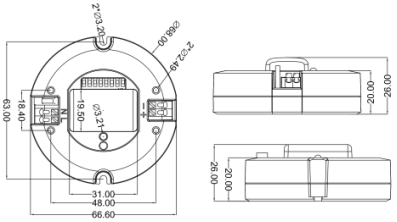

Dimension (mm)





Wring Diagram


*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.


Structure



Detection Pattern

Ceiling mounting

Function

1) On/OFF Function(Stand-by period set at ‘0S’)



2) 2-step dimming function(stand-by period set at“+∞”)



3)3-step dimming function(Stand-by period set at ‘1min/10min’)




Initialization

1) On/Off function /3-step dimming function:
After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.
2) 2-step dimming function:
After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it dims the light to a low light level (set by stand-by dim level). During the initialization, the sensor is not able to detect movement.

Factory Setting

Detection area: 100%, Hold Time: 5S, Daylight Sensor: Disable,Stand-by DIM level:25%,Stand-by period:+∞

Application Notice

Be sure to power off before adjusting DIP switch setting.
