Enhance veriosn MC003V/ R 800w 1-10v Corridor Dimming Function Microwave Motion Sensor for Stairwell Application

Description

MC003V R basically has the same specification with MC003V, except the higher mounting height 12m Max. It is innovative and active motion detectors with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.

The sensor allows energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.

Also, the 1-10V interface in the sensors can match up with Merrytek stand-alone daylight sensor MS01, and implement daylight harvesting, means the lighting system has automated controls that either turn off or dim artificial light in response to the available daylight in the space.

Feature

1. Automatic dimming when used in combination with 1-10V dimmable LED drivers or ballasts.

2. Built-in adjustable daylight sensor.

3. 1-10V interface can match up with Merrytek standalone daylight sensor MS01 and achieve daylight harvesting.

5. 4-pole press-in terminal (L,N,N,L′),easy assembly.

6. Compact size makes it suitable to fix within most luminaries

7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

8. Wide detection area, range up to 16m in diameter.

Product information

Function

3 -step dimming function

2- Step dimming function

Wiring

MC003V+1-10V driver

MC003V+daylight sensor MS01+1-10V driver

Specifications

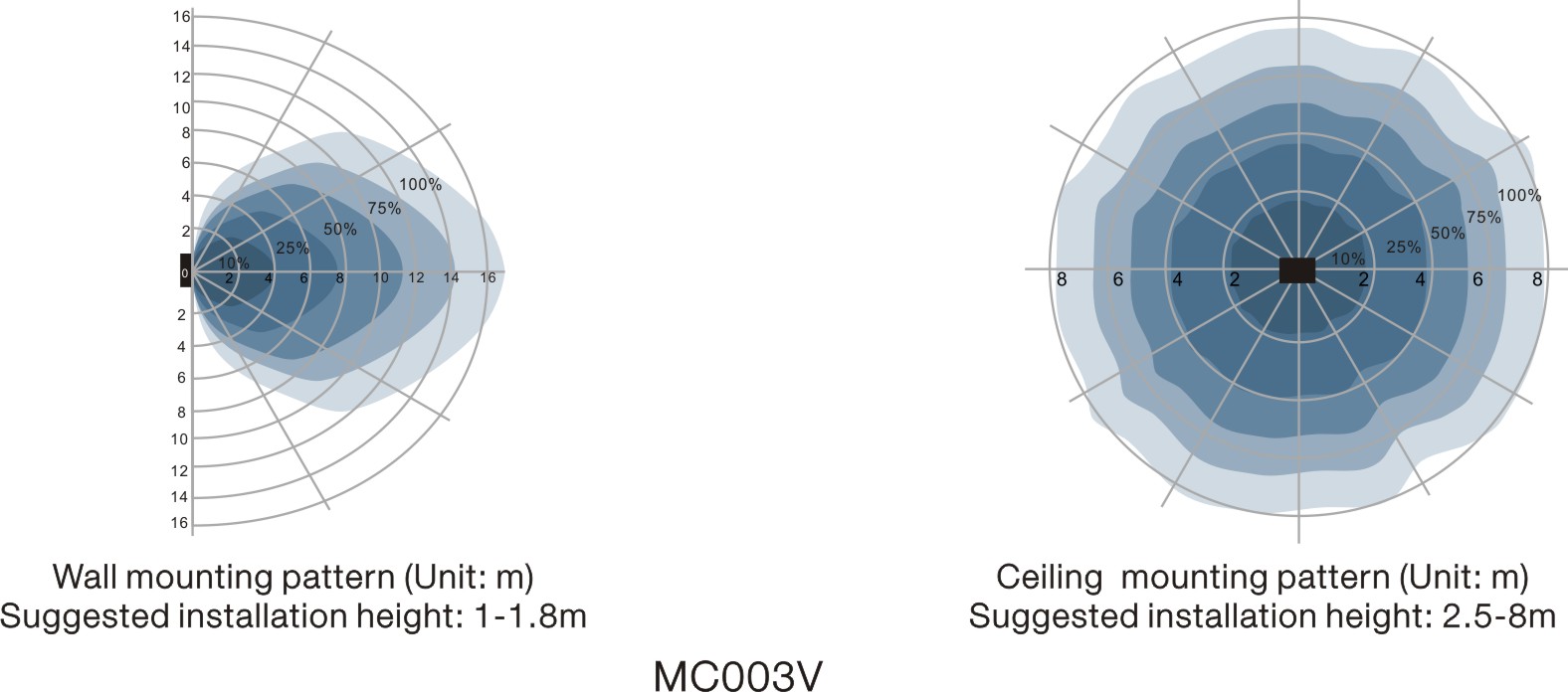

Detection Pattern

Applications:

Stairwell, corridor, balcony, pathway, washroom, kitchen, gas stations, parking lot , warehouse ,etc
