MC003V Microwave Motion Sensor Corridor Function 1 - 10v Dimming Detection Range 16m

Description:

MC003V is a innocative motion sensor built in motion sensor and daylight sensor ,perfect solution for on-off and dimming funciton .it adopt switch power ,no affect the power factor of main circuit ,with 1-10v interface can match Merrytek MS01 to achieve daylight harvesting .

Features:

1. Automatic dimming when used in combination with 1-10V dimmable LED drivers or ballasts.

2. Built-in adjustable daylight sensor.

3. 1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.

4. 4-pole press-in terminal (L,N,N,L′),easy assembly.

5. Compact size makes it suitable to fix within most luminaries

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. Wide detection area, range up to 16m in diameter.

Function

3 -step dimming function

2- Step dimming function

Specifications

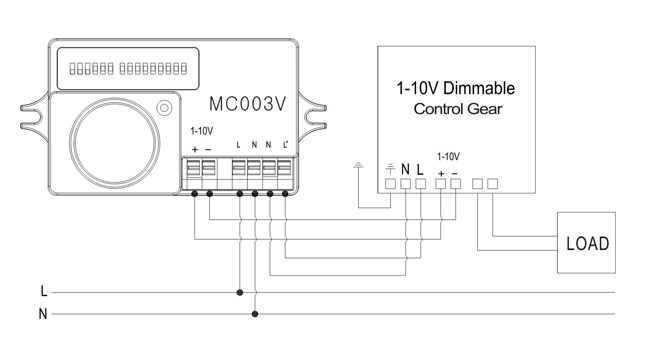

Wiring :

Applications:

Stairwell, corridor, balcony, pathway, washroom, kitchen, gas stations, parking lot , warehouse ,etc
