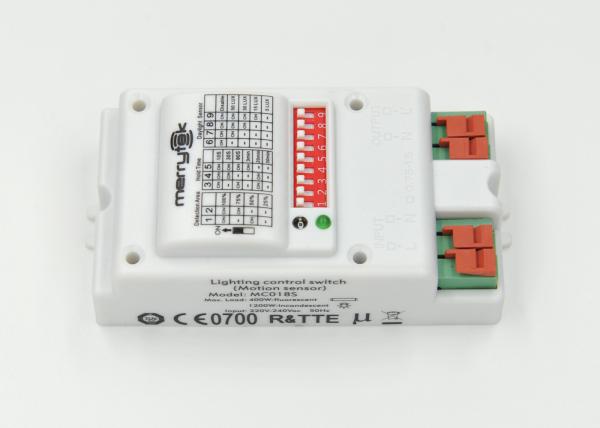

400W Microwave Motion Sensor MC018S for Lights Indoor Use , 5.8G ISM Wave Band

Description

MC018S is an innovative motion sensor, switch on the light on detection of movement, and switch off a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient in natural light.

Automati daylihgt learning :

Normally ,the sensor supplies daylihgt threshold settings 5lux/15lux/30lux / 50lux / Disable,if the exact setting range s above can not meet demand of users ,or the daylight threshold need to be reset after installtation ,rapidly switching off or switching on 3 cycles witin 3 sec can easily reset the daylihgt senosr .

1. Automatic switching based on motion and ambient light level.

2. Automatic daylight learning.

3. Zero-crossing point operation helps protect the sensor against in-rush current.

4. 5.8GHz high frequency microwave(C-Band license-free operation)

5. 4-pole press-in terminal (L, N, N,L′),easy assembly.

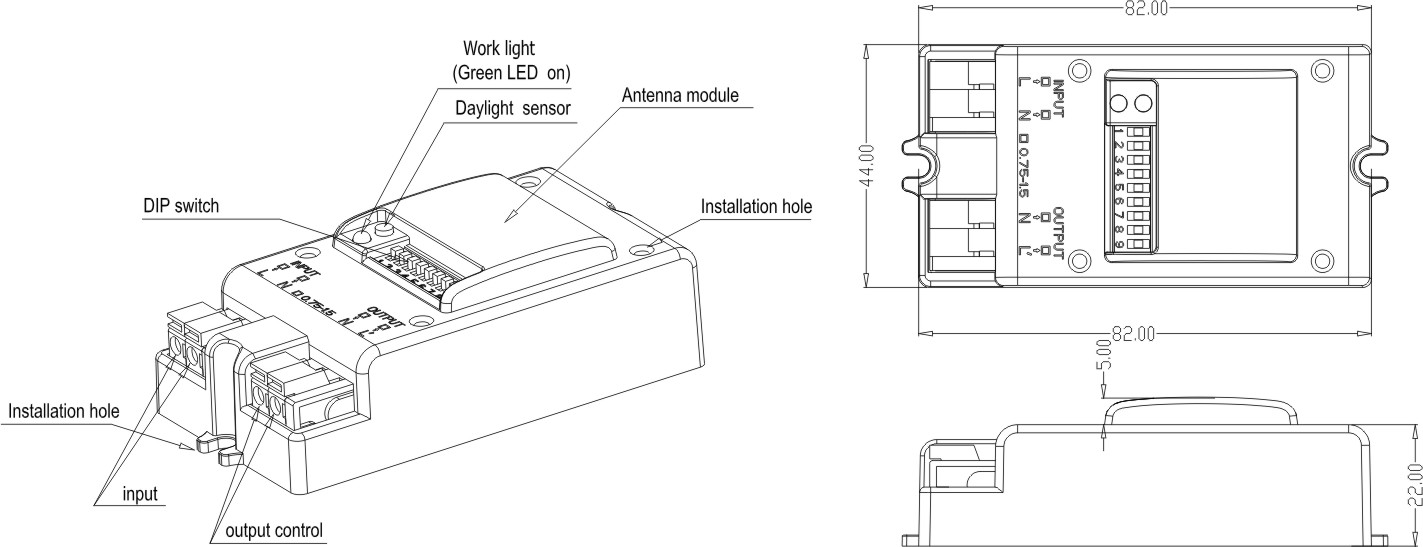

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. Two types of installation, suitable for different luminaries.

8. MC018S is an innovative motion sensor, switch on the light on detection of movement, and switch off a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient in natural light.

Function:

ON-OFF function

Detection Pattern:

Specifications:

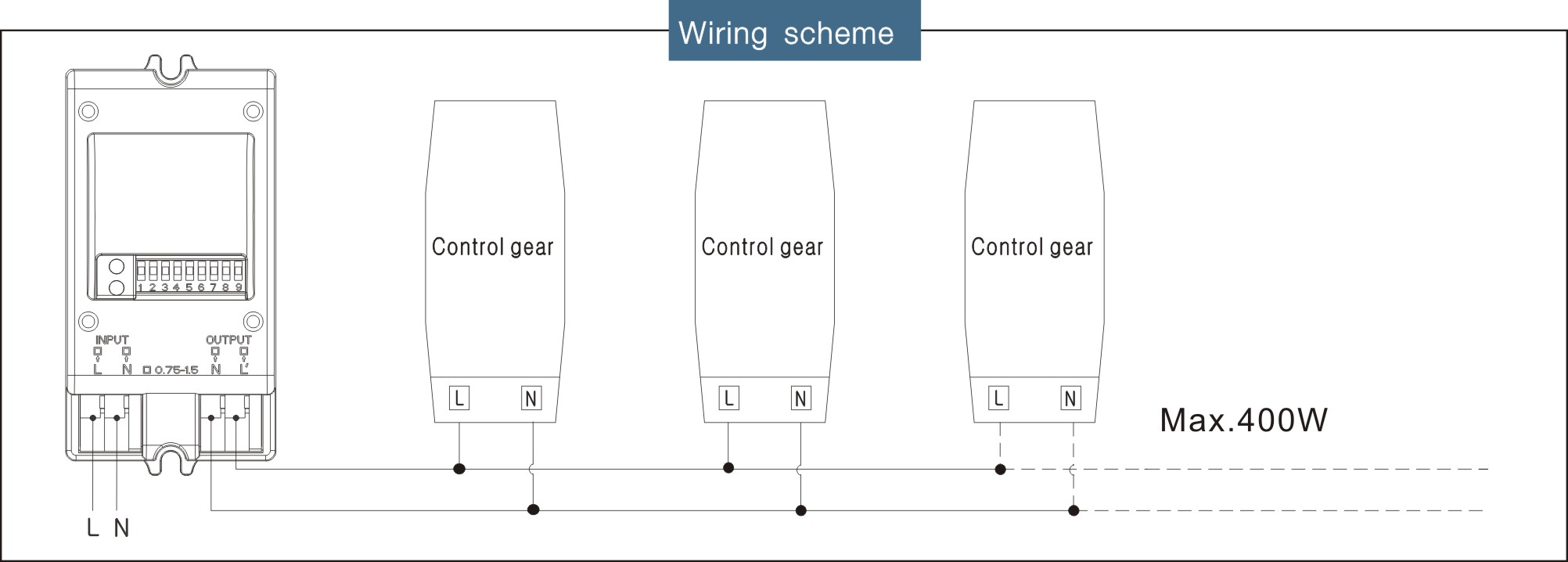

Wiring:

Applications:

Stairwell, Corridor, Balcony, Pathway, etc
