Stop production, not available.

Detachable Microwave Motion Sensor MC015S-D / Movement Detector On-off Control With CE 5 Years Warranty

Description:

MC015S-D is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.

1. Automatic switching based on motion and ambient light level.

2. Compact size makes it suitable to fix within most luminaires.

3. 4-pole press-in terminal (L, N, N,L′),easy assembly

4. Zero-crossing point operation helps protect the sensor against in-rush current..

5. 5.8GHz high frequency microwave(C-Band license-free operation)

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. MC015S-D is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.

Function:

ON-OFF function

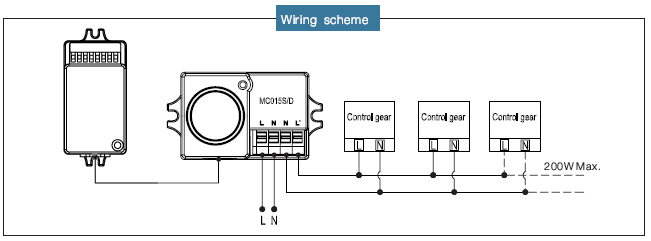

Wiring :

Detection Patter:

Specifications:

Applications:

Stairwell, Corridor,Balcony, Pathway, etc

Focus on intelligent lighting control and innovate constantly！

About Merrytek

Shenzhen Merrytek Technology Co. Ltd, founded in 2011 in Shenzhen China. For more than 13 years, we have been dedicated to research electronical products for professional lighting & smart control applications. Our main products include microwave and PIR fixture sensor, human breathing detection sensor, daylight sensor, DALI & 1-10V dimmable driver, emergency pack, & IOT controls.

Why Merrytek?

Merrytek has a leading R&D team with 75 engineers, and owns pre-research team 14 members. We got over 600 patents in China and oversea countries, including 80 invention patents.

Merrytek has invested the automation line for microwave sensors in 2018. All process from plug-in, assembling, testing and packaging are completed automatically, which raise the production efficiency as well as qualified rate.

All Merrytek products are 100% tested during production, and after product is packaged, sampling test must be carried by OQC, to make sure every product received by customer can work normally.

Contact us when you have any query of Merrytek product, we will respond you fast within 24 hours in working days. Merrytek sales team is in this industry over 10 years’ experience, service over 1000 customers all over the world, we can offer you fast and professional service.

Euro, Asia & Africa market：Ray  raylei@merrytek.com

America & Australia market：May  may@merrytek.com

Others:  sales@merrytek.com

Core Technologies Advantages

Microwave Motion Sensor

Based on principle of Doppler effect and 5.8GHz microwave detection technology for motion detecting. Currently, Merrytek developed over 200 models motion sensors which support long detection area up to 20m, 15m mounting height and outdoor use motion sensors. Those are at the leading position in our industry.

Typical products: MC and MLC series.

LifeBeing Presence Sensor Technology

As only support big range movement detecting, microwave is normally used in the places people only make a brief stay, for example, corridor, stair well, warehouse and parking lot. Merrytek use high frequency microwave and unique programming, microwave sensors are able to detect very minor movements, i.e. typing and breathing to avoid false reporting and underreporting. Merrytek provides series sensors with KNX, DALI, 485 and Bluetooth for building automation.

Application: office, classroom, meeting room, kitchen, rest room and so on.

Typical products: MSA series.

Daylight Sensor

As always, Merrytek concentrates on simple intelligent light solutions and luminaries’ construction. We successfully completed an in depth study of our patented self-adaptive LED drivers which can identify artificial light and natural light. We therefore can supply an extremely cost-effective and energy saving daylight harvesting solution for office use.

Typical products: MS series

Flicker-free DALI/1-10V Dimmable LED Driver

Replacing traditional incandescent and fluorescent lights with more efficient and longer-lasting LED-based solid-state lighting (SSL) is an undeniable trend in the lighting industry. However, since SSL fixtures are directly connected to an AC power supply, (consistent with legacy lighting), there is a risk that 100-Hz or 120-Hz flicker could occur as a result of the driving AC current’s fluctuation at the supply's output. Flicker can make people uncomfortable, causing headaches, stress and fatigue even though the human eye may not detect the flicker.

Currently, most of dimmable LED drivers have flickering issues (especially PWM types), when dimmed below 5%. Merrytek newly-developed flicker-free dimming technology can eliminate nearly all flickering and even when dimmed to 2%.

Typical products: ML and KL series.

Emergency Pack for LED Lighting

From 2016, Merrytek has dedicated to quality emergency pack for LED fittings, such as ceiling lights, tri-proof lights, down lights and panel lights. Top quality battery will be use in all our range and make sure excellent life time and good reputation.

Typical products: KE and ME series.
