    ML75V-T1 Dimmable LED Driver IP20

    Ask Lasest Price
    Brand Name : Merrytek
    Model Number : ML75V-T1
    Certification : CE
    Price : Negotiation
    Supply Ability : 10,000pcs per month
    Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
    • Product Details
    • Company Profile

    ML75V-T1 Dimmable LED Driver IP20

    ML75V-T1 Constant Voltage Triac Dimmable LED Driver 75w 24Vdc leading & trailing edge dimming 220x58x40mm


    Description:

    1, Leading & Trailing edge dimming, compatible with popular dimmer in Euro.

    2, This Triac dimmable led driver mainly works for led strip,COB luminaires,PAR 16.

    3, Output power: 75w max

    4, Output voltage: 24Vdc

    5, Output current: 3.125A max

    6, Protection: Short circuit / Over voltage / Over temperature.

    7, Dimming range: 10%-100%

    8, Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00

    9, A group of luminaires can be controlled by one Triac dimmer


    Mechanical Specification



    Specifications


    Input

    Input voltage

    220-240Vac, 50/60Hz

    Power factor (PF)

    ≥0.9(@ 240Vac input, full load and without dimmer)

    Efficiency

    ≥82%(@ 240Vac input, full load and without dimmer)

    No-load power

    ≤1.5W

    Output

    Output Voltage

    24V DC

    Output Current

    3.125A max.

    Voltage accuracy

    ±5%

    Rated power

    75W Max.

    Dimming

    Dimming mode

    Leading & Trailing edge dimming

    Dimming range

    10%-100%

    Environment

    Working temperature

    -25℃~50℃

    Storage temperature

    -40℃~80℃

    Safety and EMC

    Insulation class

    Class II, SELV

    Withstand voltage

    Input-Output: 3.7kVac/5mA/1min

    EMC

    Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

    Safety

    Compliance to EN61347-1, EN61347-2-13

    Protection

    Short circuit

    Protection mode: Auto recovery

    Over temperature

    Protection mode: Auto recovery

    Others

    Dimension

    220x58x40mm

    Enclosure

    Plastic, white

    IP rating

    IP20

    Connection

    Input: 4-hole press-in type terminal(L, L, N, N)

    Output: Screw terminal block (LED +, LED -)

    Life time

    30,000h

    Certification

    CE

    Application


    LED Strips,Panel light,COB lights

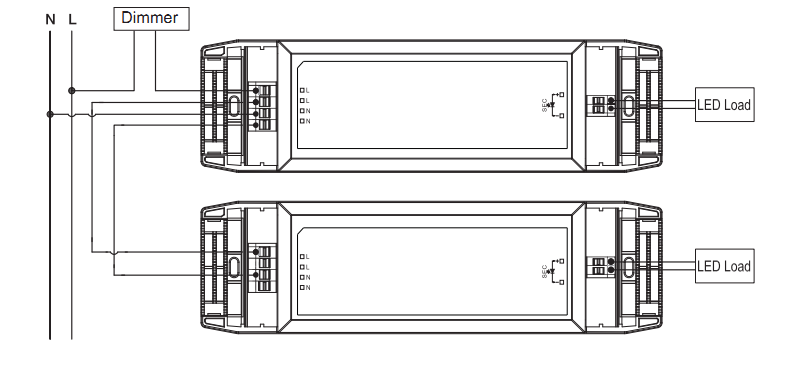

    Wire diagram


    ML40V-T Constant Voltage Triac Dimmable LED Driver 40w12Vdc leading & trailing edge dimming
