    Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc

    Ask Lasest Price
    Brand Name : Merrytek
    Model Number : MLC16C-P
    Certification : TUV
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 10,000pcs per month
    Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
    • Product Details
    • Company Profile

    Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc

    MLC16C-P Sensor driver 16w 300mA/350mA integrated with sensor dimming function


    Description


    1, Output power: 16w max.

    2, Output current: 300mA,350mA set via dip sw.itches.

    3, Output voltage: 28-48Vdc.

    4, Working mode: Auto switch on/off,or dimming by motion and ambient brightness level.

    5, HF system: 5.8GHz±75MHz,ISM wave band.

    6, Transmitting power: ≤0.5mW.

    7, Power consumption: ≤1w(Stand-by).

    8, Detection zone(D x H): 16m x 6m.

    9, Detection sensitivity: 10%,50%,75%,100% set via dip switches.

    10, Hold time: 5s,90s,3min,10min set via dip switches.

    11, Corridor function:0s,30s,10min,disable set via dip switches.

    12, Daylight sensor: 5Lux,15Lux,50Lux,set via by dip switches.

    13, Stand-by dimming level: 20%.

    14, Mounting height: 6m max.

    15, IP rating: IP 20.

    16, Designed esp. for ceiling lamp.

    17, Integrate Microwave sensor and dimmable led driver technology,save labour cost for installation.

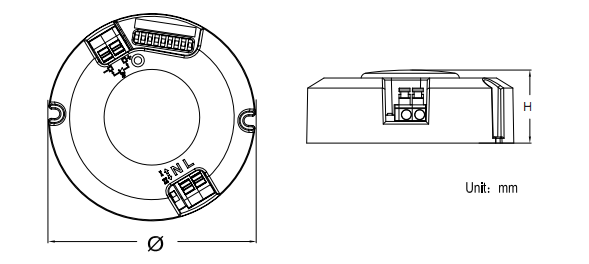

    Mechanical Specification

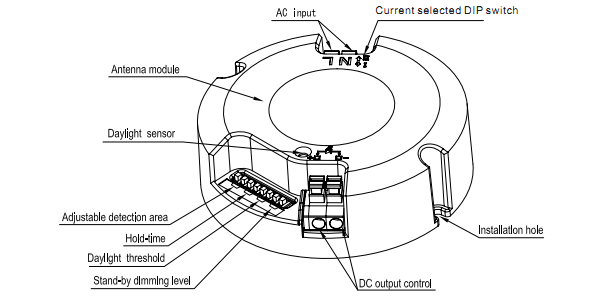

    Functions



    Specifications


    Operating voltage

    220-240Vac, 50Hz

    Output power

    16w max

    Output current

    300mA/350mA set via dip switch

    Output voltage28-48Vdc

    Power consumption

    ≤1W(standby)

    Transmitting power

    <0.5mW

    Detection zone Max.(D x H)

    16m x 6m

    Motion detection

    0.5~3m/s

    Detection angle

    150°(wall installation) 360°(ceiling installation)

    IP rating

    IP20

    Operation Temperature

    -25℃~45℃

    Hold time

    5s / 90s / 3min/ 10min

    Detection sensitivity

    10% / 50% / 75% / 100%

    Daylight sensor

    5lux / 15lux / 50lux / Disable

    Stand-by period

    0s / 3min / 10min / Disable

    Stand-by dimming level

    20%

    Life time30,000 hours
    Guaranty3 years

    Application


    Ceiling lamp,bulk head in corridor balcony,stairway,underground passage


    Wire diagram
