Large Detecting Area Microwave Motion Sensor for warehouse 12m mounting height

1. Features

1) Built-in motion sensor and daylight sensor for intelligent control

2) Low impedance sensor antenna patent helps anti-interference of kinds of wireless signals like 5G, Wi-Fi, Bluetooth, etc.

3) Parameters can be set by remote control MH10

4) Elongated Induction area with a farthest detecting radius of 15m

5) 3-12m installation height

6) RED certification for mass production

7) Independent surface mounting

2. Function

3. Dimension

4. Wiring

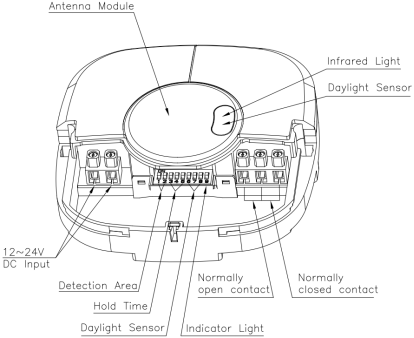

5. Structure

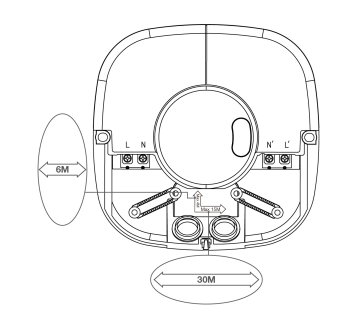

6. Detection Area

7. Remote Control

8. Initialization
After first power on, the light turns on and closes after 10 seconds. During the initialization, sensor is not able to detect moving objects signal.

9. Factory Settings
Detection Area: 100% Hold Time: 5s Daylight Sensor: Disable Indicator light: Close

10. Application Notice

1) The sensor should be installed by a professional electrician. Please disconnect the power before installing, wiring or changing the setting of the DIP switch.

2) It is recommended that each unit should be separated by more than 1m when installing multiple units.

3) Put the sensor as far as possible from large areas of metal plate, glass and other materials with high medium density to avoid triggering by mistake.

4) Avoid using objects that have been vibrating for a long time around the sensor, such as shaking fans, etc. The vibration signal will be regarded as the motion signal to trigger the sensor.
