MLC18C-NDP2 Sensor DIM LED Driver

【Product Feature】

1. Conform to ERP standard, micro-power consumption

2. 5.8GHz ISM brand, can be batch RED,FCC certification

3. Non-isolated, Flicker-free, Driver+sensor 2 in 1

4. With corridor function , light priority function, suitable for all kinds of use scenes

5. Compact size, easy to install inside the lamps and lanterns

6. All parameters can be adjusted via DIP switch

【Parameter】

【Function】

1) On/OFF function (Setting “stand-by period” to “0s”), Setting other parameters according to practical applications.

2) 3-step dimming function (Setting stand-by period to “1min/10min”), Setting other parameters according to practical applications.

3) Daylight priority function (Setting stand-by period to “+∞”), Setting other parameters according to practical applications.

​

【 Wiring 】

MLC18C-NDP2	MLC28C-NDP2

Note: The product can be connected to only one load. Connecting more than one load will damage product.

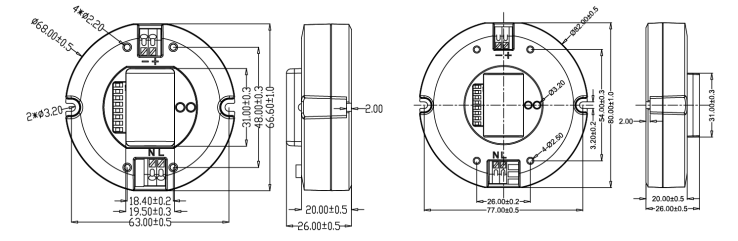

【Dimension (mm)】

MLC18C-NDP2	MLC28C-NDP2

【 Function 】

MLC18C-NDP2	MLC28C-NDP2

【 Radiation Pattern 】

【 DIP Switch Setting 】

1) Detection Area

2) Hold Time

3) Daylight Sensor

4) Stand-by period

【 Initialization 】

When power on, the product automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the product is not able to detect moving signals.

【 Factory Setting 】

Sensitivity: 100%; Hold Time: 5s; Stand-by period: 0s; Daylight Sensor: Disable.

【 Application 】

1. The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.

2. The microwave sensor has good penetration ability to plastic and wooden objects, but the front and near the microwave antenna can not be equipped with metal accessories, metal shell and glass shell, otherwise it will affect the transmission and reception of the microwave antenna.

3. It is recommended that microwave sensors be installed at a distance of more than 2m, and that they be installed at a distance of more than 2m away from switches, routers and other wireless devices to avoid radio interference, for 5G WIFI is greater than 2 m.The antenna surface of the microwave sensor is far away from the input AC and output DC to avoid low/high frequency signals interfering with the normal operation of the microwave antenna.

4. Should avoid long-term vibration equipment or moving objects around the microwave sensor, the vibration signal generated will be regarded as mobile signal trigger induction, so the installation position should be far away from large metal equipment, ventilation pipes, air conditioning outlets, exhaust vents, smoke exhaust machine and other scenes; If a pet passes through the detection area, the sensor may be triggered.

5. This product is suitable for indoor installation, when semi-outdoor or outdoor installation, wind, rain may be regarded as moving signal trigger induction; When the sensor is installed in metal lamps, metal reflective surface or narrow closed environment, the microwave will be reflected many times and trigger by mistake. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.

6. If wall mounting, the detection distance of microwave sensor will be greatly increased, please reduce the sensitivity or contact the manufacturer for technical support.

7. Due to continuous improvement, the contents of this instruction could be changed without prior notice.

8. Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.

9. The value of daylight sensor is in a sunny environment with no shadows and ambient light diffuse reflection conditions. The illuminance values detected by the product may different in different environment, at different times, in different seasons, and in different climates.
