3.7V 2600mAh manual test constant Power 3W Emergency Drivers with built-in battery

1. Description

1) Wide Output Voltage Range: Our emergency power supply offers a wide output voltage range, allowing seamless compatibility with various LED lighting fixtures. Experience uninterrupted illumination regardless of voltage fluctuations or variations in your lighting setup.
2) Input/Output Relay Switching: With intelligent input and output relay switching, our power supply seamlessly transitions between normal and emergency modes. This ensures a smooth and automatic switch to emergency power during unexpected power outages, providing uninterrupted lighting when it's needed the most.
3) Compact and Easy to Install: Designed with convenience in mind, our power supply features a built-in battery and boasts a compact form factor. Its small size makes installation hassle-free, allowing for flexible placement within your lighting system.
4) Multiple Protection Functions: Rest easy knowing that our power supply is equipped with a range of protection features. It includes battery overcharge protection, preventing damage due to excessive charging, as well as over-discharge protection to prolong battery life. Additionally, the output short circuit protection ensures the safety of your lighting fixtures.

2. Parameters

Auto Testing	Fault / test / Status	Reason	Charge Indicator Status
	Battery fully charged and operational	Standard daily use	solid green
	Battery Charging	Initial Charge/Battery Top Up	Flashing green 1 sec on 1 sec off
	Auto Test 1 Hours (every 12 months)	Periodic self test	Flashing Green 3 sec on 1 sec off
	Auto Test 5 Min (every 30 days)	Periodic self test	Flashing Green 3 sec on 3 sec off
	Duration test fault	Failed the 1 hour annual test	Flashing Red 0.5 sec on 0.5 sec off
	LED fault	Not plugged in or damaged/faulty	Flashing Red 2 sec on – 2 sec off
	Battery Disconnected/Faulty	Not plugged in or damaged/faulty	solid red
Emergency protection	Battery over-charge/deep discharge protection	Yes
	Output over-voltage protection	Yes
	Output overload protection	Yes
	Output short circuit protection	Yes
Operating Environment	Operating temperature/humidity	0℃…+50℃humidity:20%-75%(without condensation)
	Storage temperature/humidity	-5℃-35℃
	Case Max. Temp(Tc)	75℃
Safety & EMC	Withstand voltage	3000Vac 5mA 60S (Input “L N” – output “SEC+ SEC-)
	Safety standard	EN61347-1, EN61347-2-7
	EMC standard	EN55015, EN61000-3-2, EN61000-3-3
	Battery standard	UN38.3
	Environmental protection requirements	Compliant to RoHS
	Certification	CE
Others	Input/output(terminal/wiring) specification	Press terminal, wire diameter:0.5-0.75mm2
	IP rating	IP20
	Type of protection	Class 2
	Installation type	Built-in installation
	Installation dimension	137*42*22mm
	Packaging requirement	White box+Instruction manual+clapboard+outer carton(K=A)
Others	Weight :Emergency Power Supply	105g
	Lifespan	5 Year @Ta ( Battery not included )
Notes:All parameters are tested on the input voltage 230Vac,environment temperature 25℃,unless otherwise specified.

3. Dimension (Unit:mm)

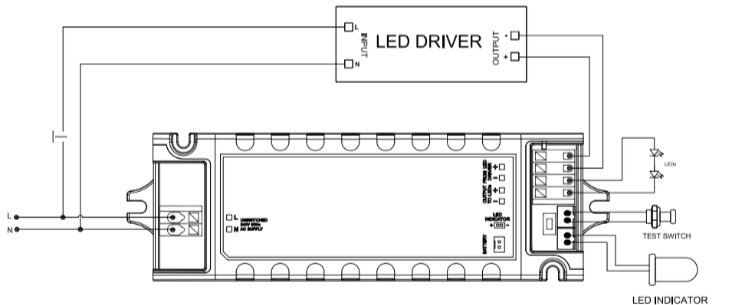

4. Wiring Diagram

5. Wiring

6 . Manual Test & Operation Instructions

1). Connect the wire according to the wiring diagram.

2). L, N power on, Switch on S1. then the load lamp turns on, The emergency driver indicator light turns green, emergency power supply normally charging. Turn off Switch S1, and the load lamp turns off.

3). Emergency Simulation: Switch on, the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, and the indicator light of the emergency driver will be extinguished. Release the switch(TEST SWITCH), then the lamp is powered by the LED driver, the indicator light will turn on.

4). Power failure and call again, the phenomenon should be the same as a simulated emergency.

5). Automatic monthly test: When the emergency power supply is connected to the mains for one month if no human emergency or emergency is caused by the mains cut off, the emergency power supply will automatically carry out an emergency for 5 minutes every month (green light blinking at short intervals). After the end of the month test, the normal charging will be carried out (the indicator light will be long). In the event of a human emergency or an emergency due to a mains cut-off, the timer will start from zero until it enters the monthly test cycle.

6). Automatic annual test (1 year/time): When the emergency power supply is connected to the mains for 12 months and there is no human emergency or emergency due to the mains cut off, the emergency power supply will automatically carry out emergency deep discharge once every 12 months (green light blinking slowly). After the annual test, the normal charge will be carried out (the indicator light will be long on). In the event of a human emergency or an emergency due to a mains cut-off, the timer will start from zero until it enters the annual test cycle.

7. Battery Application Notice

1). The battery should be recharged and discharged semiannually in normal use conditions.

2). Do not connect to the circuit when the battery is not in use to prevent over-discharge of the battery due to self-consumption of the circuit board.

3). Please keep the battery from the heat source when installing and using it, and only be allowed to use it in a certain working temperature range.

4). The battery should be stored in a cool and dry environment.

5). After a long time of storage, the battery is cycled every 6 months as required.
