    24GHz Large-space Human Movement Presence Sensor With Detecting Angle Adjustable For Hotel Room

    Ask Lasest Price
    Brand Name : Merrytek
    Model Number : MSA219 Z1
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10,000pcs per month
    Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
    • Product Details
    • Company Profile

    24GHz Large-space Human Movement Presence Sensor With Detecting Angle Adjustable For Hotel Room

    Tuya Zigbee 24GHz Wireless Presence sensor with detecting angle adjustable for the hotel room


    1. Feature

    1) Patented 24GHz Presence Detection Technology
    2) Accurate Presence/Absence Output regardless of deep-sleep
    3) Tuya Zigbee communication available
    4) Detection antenna flippable from -30°to 30°
    5) 24Ghz ISM Band Millimeter Wave Radar technology
    6) Sensor parameter adjustable and group assignment by Tuya app


    2. Parameters


    Input/OutputInput voltage100-240Vac 50Hz/60Hz
    Rated voltage220V AC
    Working Current12mA max
    Working Power≤1W 220V AC
    Wireless moduleCommunication module frequency2.4GHz-2.484GHz ZIGBEE Transmitting Frequency: 10dB Receiving Sensitivity: -101±2dBm
    Sensor ParameterRadar frequency24GHz-24.25GHz ISM band
    Transmitting Power5mW Max.
    Detection AreaAPP setting :1 level-12 level
    Hold TimeAPP setting:30s /1min / 2min/3min /5min /10min /20min/30min
    Daylight measure range0-1200Lux
    Radius detection range(based on QS1 mode 100% sensitivity)Motion/Presence(3m height):2.5-4m
    Mounting HeightAvailable
    Remote control2.5-4.0m
    3db Beam Angle100°(horizontal)
    100°(vertical)
    Application EnvironmentDrill holeΦ70mm
    Working Temperature0℃...+50℃
    Storage Temperature-25℃~+80℃
    Certificate StandardCertificateFCC/RED
    Environmental RequirementCompliant to RoHS
    IP RatingIP20
    Note: "N/A" means not available.

    3. Dimension ( mm)


    4. Wiring

    5. Initialization


    When powered on, the sensor indicator will turn off after flashing for 20s and will not detect a moving signal during this time. After 20S, you can use the Tuya app to adjust the detection area, hold time, daylight sensor, etc


    6. Detection area

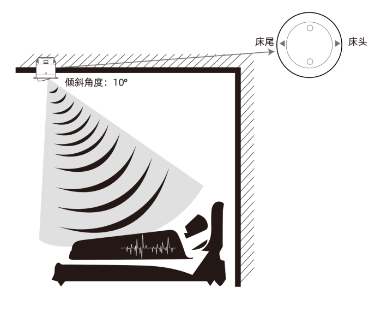

    7. Angle adjustable example


    8. Factory Setting


    Detection Area:12 level; Hold Time : 1min; Indicator light: open
