Microwave Motion Sensor Human Sensor for Accurately Detecting with Patented Low Impedance Antenna MC093S

1. Features

1) Built-in daylight sensor and human sensor, which can automatically switch on/off based on ambient light and human motion.

2) Using the latest human detection technology to detect small movements such as shaking head, turning around and etc. suitable for office field.

3) Patented low impedance antenna design, anti air conditioning, ventilator and other interference;

4) Support for different kind of application way.

5) Override sensor function by switch on and off power 3 times

6) DIP Switch design, users can configure the parameters according to their needs.

2. Parameters

3.Function

1) On/OFF Function

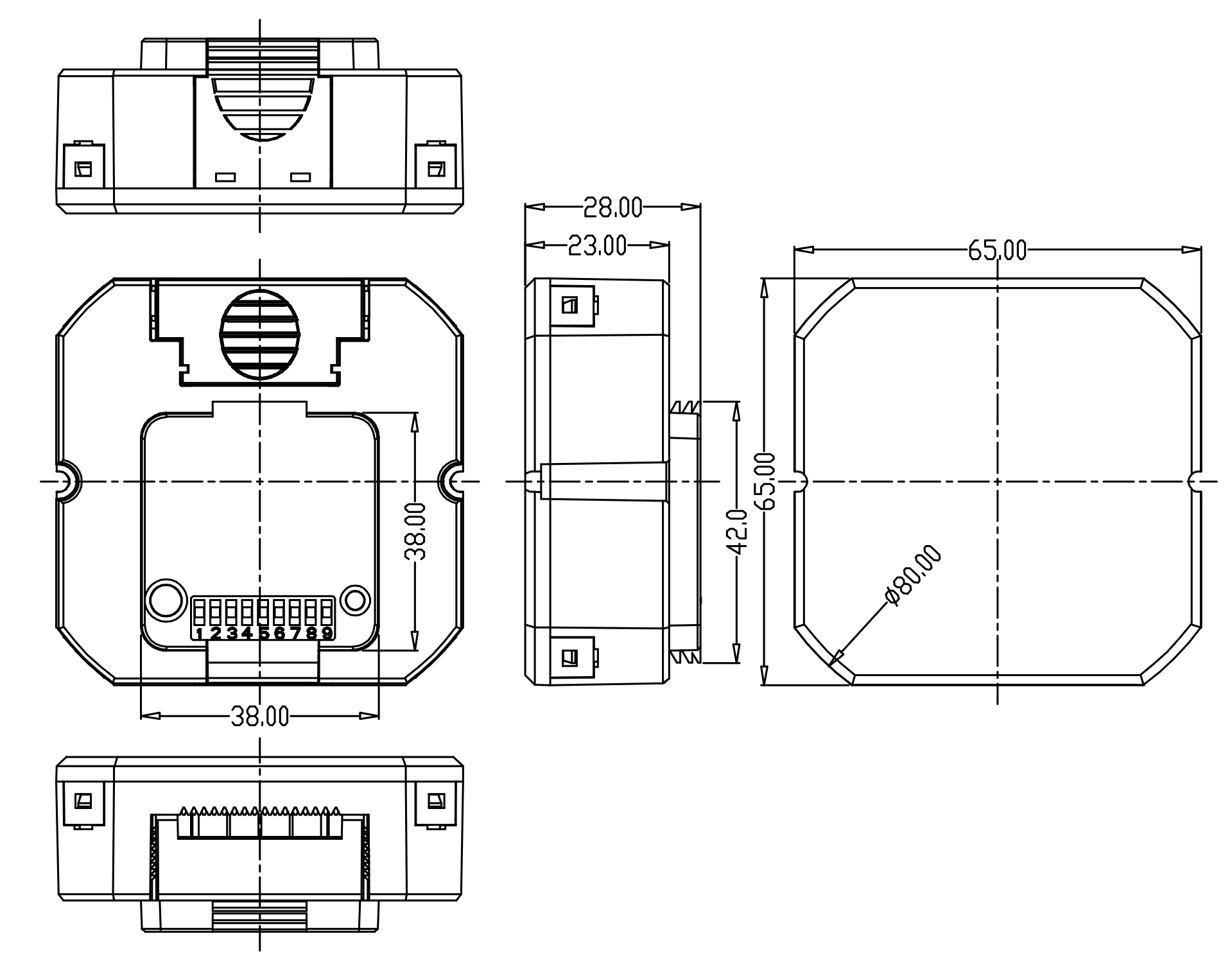

4.Dimension (mm)

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

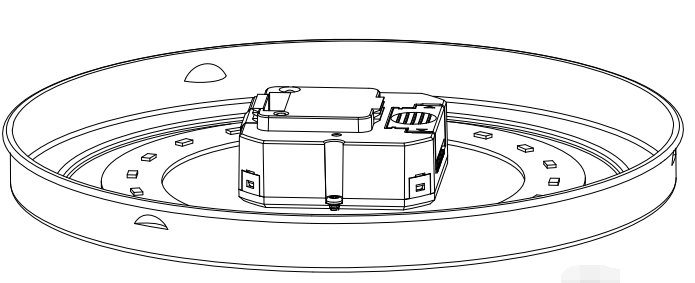

5.Installation guide:

6.Function diagram

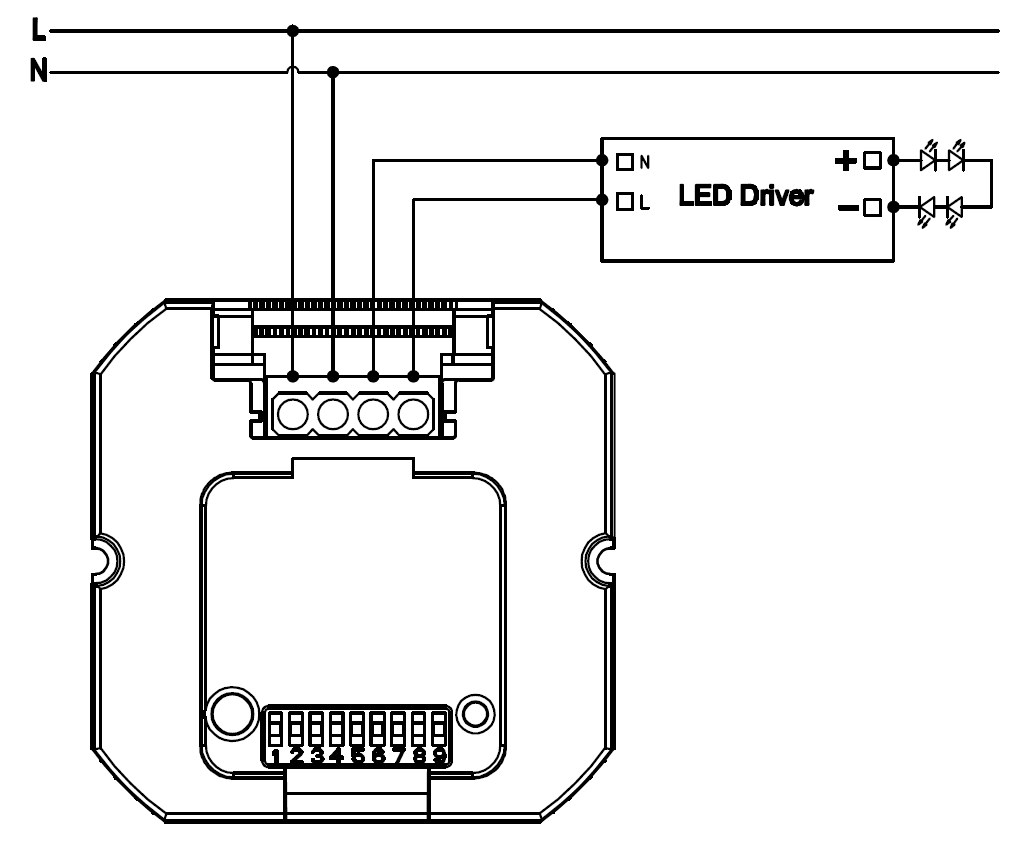

7.Wiring

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

8. Radiation pattern

1)Ceiling mounting

9. DIP switch

1)Detection Area

10. Cancel sensor function

Sensor function can be canceled by switch on /off power 3 time in 2s, Turn on the power again, sensor function come back .

11. Initialization

After power on, the sensor automatically turns on light at 100% brightness. After 30sec, it turns off the light. During the initialization, the sensor is not able to detect movement.

12. Default Settings

Detection area: 100%, Hold time: 3min, Daylight sensor: Disable ,Minor motion indicator:Turn off

13. Notes for Application

1), The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.

2), The light sensitivity threshold is in a sunny environment, no shadow and ambient light diffuse reflection.

Ambient lux level could be different in different environment, weather, climate, time-of-day and season.

3),The parameters of the sensor may need to be reconfigured in different installation environments.

4),This sensor is for indoor use only. It will affect the waterproof effect for outdoor use. Wind, rain, and moving objects around will cause false triggering.
