Ultra-Small Size UL Approved MC090S U2 Microwave Motion Sensor Multiple Installation Methods

1.Feature

• Special motion sensor for sterilizing lamp: the light turn off when detect people come; the light turn on when people leave.
• Free ISM band 5.8ghz microwave band, active detection, stable and reliable.
• Ultra-small installation size, multiple installation methods (surface and bottom screw installation)
• Batch products to ensure compliance with FCC certification requirements, the lamp with sensor certification is guaranteed.

2.Parameters

4. Dimension (mm)

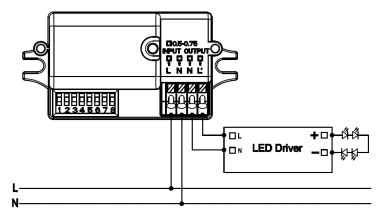

5. Wiring

6. Structure

7. Radiation Pattern

Ceiling mounting

Ceiling mounted height: 3m Sensitivity: 100%/75%/50%/25%	Ceiling mounted height: 6m(*) Sensitivity:100%/75%/50%
Normal moving (Speed:1m/s)	Normal moving (Speed:1m/s)
Slow moving (Speed 0.3m/s)	Slow moving (Speed: 0.3m/s)
* 50%,75%,100% detection sensitivity is workable when installed at 6 m mounting height. Only 25% sensitivity is not able to detect motion signal.

Wall mounting

Wall mounted height: 2m Sensitivity: 100%/75%/50%/25%
Normal moving (Speed:1m/s)	Slow moving (Speed 0.3m/s)

8. Function Dialing Settings

Detection Area

	1	2
Ⅰ	ON	ON	100%
Ⅱ	ON	-	75%
Ⅲ	-	ON	50%
Ⅳ	-	-	25%

Delay Time

	3	4	5
Ⅰ	ON	ON	ON	5S
Ⅱ	ON	ON	-	30S
Ⅲ	ON	-	ON	1min
IV	ON	-	-	3min
V	-	ON	ON	5min
VI	-	ON	-	10min
VII	-	-	ON	20min
VIII	-	-	-	+∞

Hold Time

	6	7	8
Ⅰ	ON	ON	ON	15min
Ⅱ	ON	ON	-	30min
Ⅲ	-	ON	-	1H
V	ON	-	-	2H
IV	-	-	-	+∞

9. Initialization

Attachment:

1>. Self-test: there is no output of self-test on power (12S). After self-test 2 seconds detection. The sterilization light was turn on when no one trigger the sensor ,No output when the detect human body was moving, and the sterilization light was on after the pre-set delay time when the human being left.

2>. Delay time: after the human being left, the pre set delay time enter into the hold time (the sterilizing time).

3>.Hold time: The time of the sterilization light on, the hold time has the interrupt function, the hold time (the sterilization light is on), when the human being came ,the light will be turn off, after the human being leaves,the sensor get into the delay time, after run the delay time, the sterilization light will be turn on. The hold time will not start the timer from the beginning, it will continue to account the time base on previous lighting time, until the pre set hold time finished ,then the light off, need to power again after the restart.

10. Factory settings

Detection Area: 100%, Delay Time: 5S, Hold Time2: +∞

11. Use Caution

1. Be sure to cut off the power supply before installing or adjusting the setting of the dial switch.

2. The microwave cannot pass through the metal, make sure there are no metal above the sensor.

3. It has to be at least 15mm away from metal around the microwave antenna. It is not allowed to place antenna and metal on the same horizontal.
