    20W & 46W Flicker Free Constant Current Tuya Bluetooth Dimmable LED Driver

    Ask Lasest Price
    Brand Name : Merrytek
    Model Number : ML20C-B, ML20CC-B, ML46C-B, ML46CC-B
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000 pcs/month
    Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
    • Product Details
    • Company Profile

    20W & 46W Flicker Free Constant Current Tuya Bluetooth Dimmable LED Driver

    Tuya Bluetooth Dimmable LED Driver series C.C.


    Product Feature

    • Built-in Tuya Bluetooth module
    • Flicker-free for whole dimming range
    • Stand-by power below 0.5W
    • Protection: short circuit / over voltage
    • 5 year warranty

    Parameter

    Micro seriesML20C-BML20CC-BML46C-BML46CC-B
    InputOperating Voltage198-264VAC 50Hz /60Hz
    Rated Input Voltage220-240VAC 50Hz /60Hz
    DC Input Voltage range200-240VDC
    Input Current0.13A Max.0.12A Max.0.26A Max.0.26A Max.

    Input Inrush Current

    (Half current pulse width 100US) @230VAC

    <15A<30A
    Power Factor≥0.95 @230VAC (Full load)
    Total harmonic distortionTypical: 15% (@230Vac, 100% load)
    No-load power≤0.5W
    Stand-by Power≤0.5W (@230Vac)
    Efficiency (@230VAC Full load)84%Max.88%Max.
    Wiring MethodPush terminal, wire cross section:0.5-2.5mm2
    OutputOperating modeConstant Current
    Load typeLED
    Ripple requirement (Flickering or flickering-Free)Flicker value: less than 5% for whole dimming range
    Start up time<1s (@230Vac)
    No-load output voltage60VDC Max.65V DC Max.70V DC Max.70V DC Max.
    Load output voltage range9-42VDC9-50V DC9-53VDC9-53VDC
    Full load output power20W Max.20W Max.46W Max.46W Max.
    Load output current300-700mA250-400mA600-1050mA700-1050mA
    Constant current/voltage PrecisionConstant Current Precision ±5%
    Wiring methodPush terminal, wire cross section:0.5-1.5mm2
    Control MethodWorking frequency5.0/2.4GHz 250Kbps
    Transmitting power+10dBm (Max.)
    Transmission distance>20m (Visible distance)
    Exception Protection RequirementsOutput over voltage protection
    protection
    Yes, without self recovery function (Can be inquired)
    Output short circuit protectionYes, without self recovery function (Can be inquired)

    Operating

    Environment

    Operating temperature/ humidity-25℃~45℃ Humidity:85% (Non-condensing)
    Storage temperature/ humidity-40℃~80℃, Humidity:10%–95%
    Max. case temp(Tc)85℃

    Safety

    & EMC

    EMC standardEN55015 EN61547 EN61000-3-2 EN61000-3-3
    Safety standardEN61347-1 EN61347-2-13
    CertificationCE
    Withstand voltage3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
    OthersDegrees of protectionIP20
    Type of protectionClass II
    Installation typeIndependent installation
    Dimension160*42*24mm180*42*24mm
    Packaging requirementPE bag+Clapboard+Outer Carton(K=A)
    Weight109±5g118±5g145±5g145±5g
    Life5 year @Ta full load
    Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

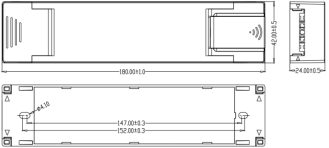

    【Dimension (mm)】



    【Wiring Diagram】


    Fig.A Single output version


    Fig.B Dual output version


    【Current gear Setting】


    ML20C-B

    Current gear setting

    1234
    300mA(9-42V)----
    350mA(9-42V)---ON
    400mA(9-42V)--ON-
    450mA(9-42V)--ONON
    500mA(9-40V)-ONON-
    550mA(9-36V)-ONONON
    600mA(9-32V)ON-ONON
    650mA(9-30V)ONONON-
    700mA(9-28V)ONONONON

    ML46C-B

    Current gear setting

    1234
    600mA(9-53V)----
    650mA(9-53V)---ON
    700mA(9-53V)--ON-
    750mA(9-53V)--ONON
    800mA(9-53V)-ON-ON
    850mA(9-53V)-ONON-
    900mA(9-50V)ONON--
    950mA(9-48V)ONON-ON
    1000mA(9-46V)ONONON-
    1050mA(9-44V)ONONONON

    ML20CC-B

    Current gear setting

    Channel 212
    Channel 134
    250mA(9-50V)--
    300mA(9-50V)-ON
    350mA(9-50V)ON-
    400mA(9-50V)ONON

    ML46CC-B

    Current gear setting

    Channel 2123
    Channel 1456
    700mA(9-53V)---
    750mA(9-53V)--ON
    800mA(9-53V)-ON-
    850mA(9-53V)-ONON
    900mA(9-50V)ON--
    950mA(9-48V)ON-ON
    1000mA(9-46V)ONON-
    1050mA(9-44V)ONONON

    【Matters Needing Attention】


    1) When the LED lamp is connected to the LED driver, it is not allowed to disconnect and connect the LED lamp and the LED driver, otherwise the LED lamp may be damaged..

    2) When using this product, please use it in accordance with the specifications. Failure may occur if it is used beyond the conditions of use of this product.

    3) When using this product for networking, the same floor must be equipped with at least one gateway (horizontal transmission communication > 20 meters). If the same gateway is used on different floors, the communication is prone to abnormal situations such as code loss.

    4) The Bluetooth module is assembled on the output side cover, which can be adjusted from 0-90 degrees for better communication.
