    MLC09C-P Integration Of Microwave Motion Sensor And Daylight Sensor For LED Ceiling

    Ask Lasest Price
    Brand Name : Merrytek
    Model Number : MLC09C-P
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T or Western Union or PayPal
    Supply Ability : 10,000pcs per month
    Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
    • Product Details
    • Company Profile

    MLC09C-P Integration Of Microwave Motion Sensor And Daylight Sensor For LED Ceiling

    MLC09C-P Integration of microwave motion sensor and daylight sensor for LED Ceiling

    • On-Off / 3-step dimming function for LED ceiling

    • Flicker-free dimming

    • Stand-by power ≤1W
    • Integration of microwave motion sensor and daylight sensor

    • Automatic switching and dimming based on motion and light level

    • Output current can be set via DIP switch

    • Unique design with mini sensor detector makes the drivers suitable to fix within compact luminaries

    • Detection area, Stand-by dimming level, time delay and daylight threshold can be precisely set via DIP switch


    Specifications


    Input


    Operating Voltage198-264Vac 50Hz/60Hz
    Input Voltage220-240Vac 50Hz/60Hz
    Input Current0.05A Max.
    Power Factor≥0.8 @230Vac (Full Load)
    Standby Power≤1W
    Efficiency78% Max. @230Vac
    Wiring MethodPress fit terminal Wire Diameter:0.5-1.5mm2
    OutputOperating modeDimming control On/Off control
    Load typeLED
    Ripple requirement (Flickering or Flickering Free)Flicker-free (10%-100% flicker<2%)
    No-load output voltage50Vdc Max.
    Load output voltage range28-48Vdc
    Full load output power10W Max.
    Load output current150mA/200mA
    Constant current/voltage PrecisionConstant Current Precision ±5%
    Wiring methodPress fit terminal LED+ LED- Wire Diameter:0.5-1.5mm2
    Exception Protection RequirementsInput over voltage ProtectionN/A
    Output over voltage ProtectionYes
    Output over load protectionYes
    Output no load protectionYes
    Output over temperature protectionYes
    Output short circuit protectionYes
    Sensor ParametersHF Operating Frequency5.8 GHz ±75 MHz ISM wave band
    HF Radiated power0.5mW Max.
    Hold Time5s/90S/3min/10min(set via 2 DIP)
    Dimming Ratio10% 25% (set via 1 DIP)
    Stand-by Period0S/30S/10min/+∞(set via 2 DIP)
    Detection Area100% 50% (set via 1 DIP)
    Daylight Sensor5lux/15lux /50lux /Disable (set via 2 DIP)
    HF Detection AreaRadius 3-7m (Mounting Height 3M)
    Mounting Height:Suggested ounting Height:3-6m , 6m Max.
    Detection Angle150°(Wall Mounting), 360°(Ceiling Mounting)

    Operating

    Environment

    Operating temperature/ humidity-25℃~50℃ humidity:85%(Non-condensing)
    Storage temperature/ humidity-35℃~80℃ humidity:85%(Non-condensing)
    Outer Max. temperature(Tc)80℃

    Safety

    & EMC

    Isolation pressurization(L N)Input - Output,3000VAC/5mA/1min
    Safety RequirementEN61347-1
    EMCEN55015
    Certificate requirementCE
    OthersIP RatingIP20
    Protection levelClass II
    Installation requirementIndependent installation
    Outer dimensionΦ82*H28.5 mm
    Life30000h @ Ta Full load

    Function:

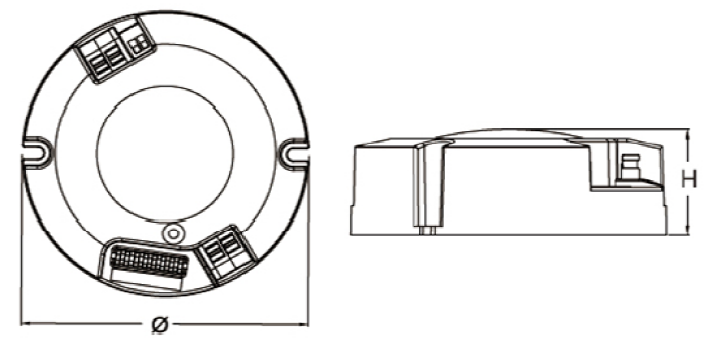

    Dimension (Unit:mm)



    Wring Diagram:
