    Dimmable UL Certified Motion Sensor 15m Max Installation Height

    Ask Lasest Price
    Brand Name : Merrytek
    Model Number : MC083V 99
    Certification : UL, CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000 pcs/month
    Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
    • Product Details
    • Company Profile

    Dimmable UL Certified Motion Sensor 15m Max Installation Height

    【Product Features】

    • Patented microwave antenna, mounting height is 15m Max, suitable to install in most of warehouses
    • Work with 1-10V dimmable LED driver, easy to achieve 2-step or 3-step dimming function
    • Supports high-sensitivity and low-sensitivity modes (for metal ceilings, metal reflector mounting environments)
    • Sensor data can be set by DIP switch & remote control.
    • 5 years warranty
    • UL listed certificate

    【Parameters】

    Input
    Rated Voltage120/277V AC 50/60Hz(US);220-240VAC 50/60Hz(Europe)
    Stand-by Power≤0.5W
    Surge Test1kV(L/N,EN61000-4-5)
    Output
    Output ControlON-OFF0-10VDC Dimming Signal
    Load Capacity4A @120Vac 3A @277Vac
    Max. Surge Capacity50A (50% Ipeak, twidth =200us, 230Vac full load, cold start);
    0-10VDimming

    < 50mA (Non-constant current source)

    10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 50% (4.9-5.1V)

    Sensor Parameter
    Operating Frequency5.8 GHz ±75MHz, ISM wave band.
    Transmitting power3mW Max.
    Hold time5S/30S/1min/3min/20min/30min/60min(setting by DIP)
    5s/30s/1min/3min/5min/10min/20min/30min (setting by remote)
    Stand-by dim Level20%(1.9-2.1V)/30%(2.9-3.1V)(setting by DIP)
    10%(1.4-1.6V)/20%(1.9-2.1V)/30%(2.9-3.1V)/50%(4.9-5.1V)(setting by remote)
    5s/30s/1min/3min/5min/10min/20min/30min (setting by remote)
    Stand-by Period0S/5S/5min/10min/30min/60min/+∞(setting by DIP)
    0s/10s/1min/3min/5min/10min/30min/+∞ (setting by remote)
    Detection100%/75%/50%/25%(setting by DIP)
    100%/75%/50%/25% (setting by remote)
    Daylight SensorDaylight threshold5lux/15lux/30lux/50lux/100lux/150lux/Disable
    5lux/15lux/30lux/50lux/100lux/150lux/Disable (setting by remote)
    Daylight priorityONOff

    5lux/15lux/

    30lux/50lux

    Turn on Value+(50-150Lux)
    100luxTurn on Value+(50-150Lux)
    150luxTurn on Value+(50-150Lux)
    Detecting Radius

    ceiling mounting12m r≥3m@1m/s, 39.4ft r≥10ft@3.28ft/s

    Testing condition: 100% sensitivity, open 60㎡ indoor area.

    Mounting Height12m(15m Max )(39.4ft Max 49.2ft)
    Environment
    Operating Temperature-25~60°C(-13~140°F)
    Storage Temperature-40℃~80℃(-40~176°F), Humidity: ≤85%(Non-condensing)
    Certificate Standard
    CertificateUL(pending) CE
    Environmental RequirementCompliant to RoHS 2.0, Reach
    Safety standardsEN61058-1,UL60703-1
    EMC standardsEN300440; EN301489-1; EN55015; EN61547; EN61000-3-2; EN61000-3-3; EN62479
    IP RatingIP20
    Product ClassClass Ⅱ
    Other
    Wiring

    AC wire:(L:Black;N:White;L’:Red)

    1-10V:(GND:Pink;10V:Purple)

    InstallationBuilt-in
    PackageBubble bag + Clapboard + Carton(K=A)
    Net Weight129.4±5g
    Lifetime5 years warranty @Ta

    【Function】


    ON-OFF functionStand-by Period be set “0s”
    2-step dimmingStand-by Period be set “+∞”
    3-step dimmingStand-by Period be set “5S/5min/10min/30min/1h”
    Daylight priorityStand-by Period be set “+∞”

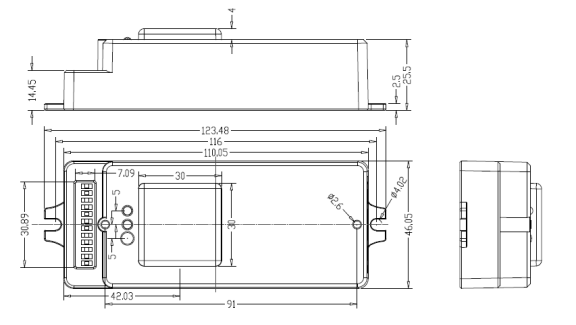

    【Product Information】

    Wiring diagram

    *The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

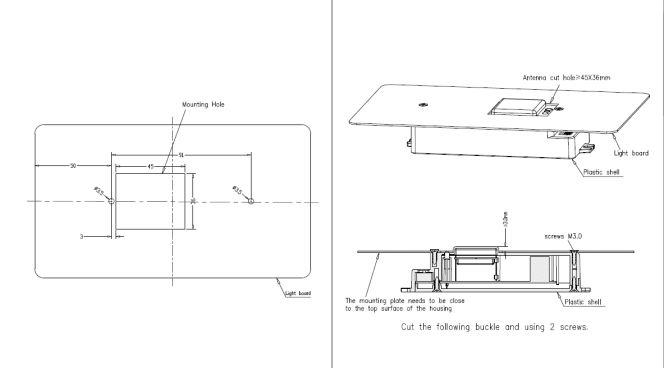

    【Installation Instruction】

    【Detection Range】



    【Remote Control】

    【Initialization】


    After power on, the sensor automatically turns on light to 100% brightness and turns off light in 10seconds. During initialization, sensor is not able to detect movement.


    【Default setting】


    Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand-by Period: 0s, Stand-by DIM Level:20%


    【Application Notice】


    • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
    • Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.. Given detecting area is typical value that was measured by 165cm/65kg testers in an indoor open environment.
    • The detection area of the microwave sensor when installed on the wall will be greatly increased compared to when installed on the ceiling. If adopts wall ceiling, please reduce the sensitivity or contact our company to confirm the usage settings. The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
    • Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
    • Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
    • The installation height of the sensor product cannot exceed 15 meters, and the optimal height is 12 meters. The distance between the two sensors should be greater than 3m.
    • When the sensor is installed in a metal lamp, on a metal reflective surface, or in a small closed environment, the microwave will be reflected multiple times and cause false triggering. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.
    • Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
    • Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product.
    • For the new installation environment, it is recommended to test 5pcs samples before installation.
